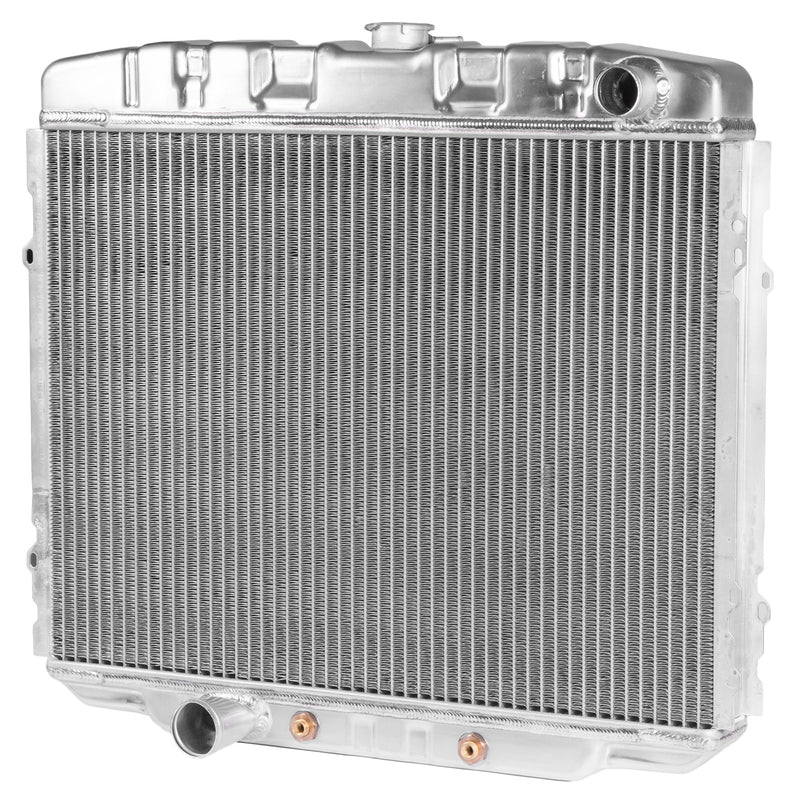

Proflow Radiator, OEM Style, Performance Aluminium Upgrade, For Ford Falcon/Fairlane GT Style, ZC ZD - XW XY 302/351C, 3/8NPT & 1/4NPT Ports , Each

These direct upgraded replacements of the original Ford Falcon XW-XY / Fairlane ZC-ZD Cleveland radiators feature two large 1” tubes for high flow and maximum cooling. Most brass copper radiators use 1/2" tubes so in comparison these radiators are equivalent to a 4 core radiator. These radiators are fitted with automatic transmission cooler as used in O/E vehicles. Specifications: XR to XY with Cleveland or Windsor with L/H inlet water pump ZA to ZD with Cleveland or Windsor with L/H inlet water pump Accepts original Shroud and retaining clips 351 style battery tray should be used to provide adequate clearance PFERDM-077 suggested mounting kit OEM factory style pressed tanks Overall Width: 640mm Overall Height: 570mm Core Width: 600mm Core Height: 440mm With 3/8NPT Port In Top Tank For Electric Fan Switch With 1/4NPT Port in bottom tank for Sacrificial Anode PFE933-ANO (Recommended) or Drain Plug
