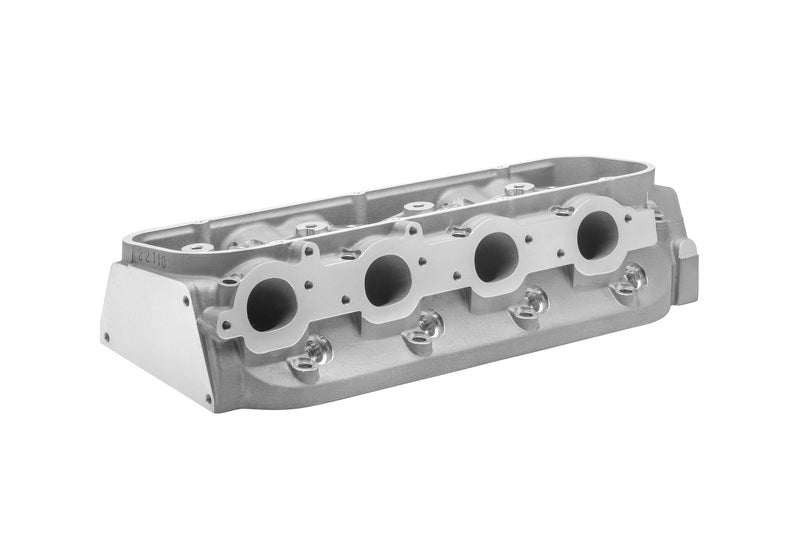

Proflow Cylinder Heads, AirMax 290, Aluminium, BB Chevrolet, Bare, 112cc Chamber, 290cc Intake Runner, Pair

Proflow does not sacrifice quality for a low price--you get both with our aluminium cylinder heads. The lightweight heads are cast from A-356 aluminium alloy with a large choice of engine, for SB & BB Chevrolet, LS Chev Holden Ford SB 289-351W, 302, 351 Cleveland 2V & 3V & BB FE, and Chrysler SB & BB. They have phosphorous bronze valve guides, and ductile iron valve seats for use with unleaded gas. They're also end-milled and drilled for accessories. The fully assembled heads have stainless steel valves, high performance valve springs, 7 degree valve locks, rocker arm studs, and guideplates. Perfect for your Mild or High performance Hot Rod. Specifications for Bare Cylinder Heads SPECIFICATIONS Combustion Chamber 112 cc Intake Port Volume 290 cc Intake Port Dimensions 2.030” (H) x 1.830” (W) Exhaust Port Volume 135 cc Exhaust Port Dimensions 1.770” (H) x 2.010” (W) Spark Plug Location OEM Intake Valve Diameter 2.250” Exhaust Valve Diameter 1.880” Valve Stem Diameter 11/32" Valve Spring Pocket ID 1.725” Valve Guide OD 0.530” (0.560" at base) Maximum Valve Lift 0.800" (0.050" margin) Rocker Stud Thread Size 7/16”-14 Valve Angle 4° Deck Thickness 0.750” IMPORTANT iNFORMATION Head Gasket, Fel-Pro #1047 (Mark V and VI) Head Gasket,, Fel-Pro #1017-1 (Mark IV) Head Bolts, ARP 135-3703 (Mark IV) Head Bolts, ARP 135-3707 (Mark V) Head Studs, ARP 235-4713
